Designed and made in Canada mapleleaf





Wide-open transparent lid (85 degrees)

High-grade stainless steel

Precise analog controls

























Model 219M
(19" sealing bars along
front/back of chamber)




Spacious stainless steel
chamber


 Hydraulic cylinders
High Density
PE plastic shims to support the packaging of various sized products


Model 216M
(16" sealing bars along
sides of chamber)
Two V-shaped wires
on each sealing bar






Nel 216/219M
the standard in versatility and performance


The "Nel" series of vacuum packaging machines has maintained a tradition of top performance in an easy-to-use stand alone form. Available with either manual or automatic digital controls, a swing lid is also available for added versatility.




SPECIFICATIONS


Click on the icon below to download specifications sheets

download specs model Nel 219M

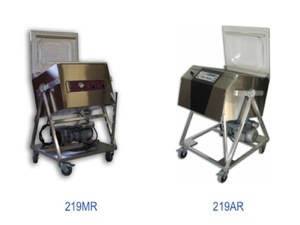

download specs model Nel 219MR (tilt)

  RB0021 Busch pump 21 m3/h, 1.25 HP
  Electrical requirements 120 VAC,15 A,60 Hz
  Vacuum level vacuum up to 99.999% (2 mbars)
  Sealing bar  2 x 16" or 2 x 19"
  Duty cycle from 8 to 90 seconds
  Overall dimensions  22” x 22"x 21”
  Inside chamber size 19.5"x 16.5" x 7.5"
  Warranty one year
